Bimetal Switchgear Connectors

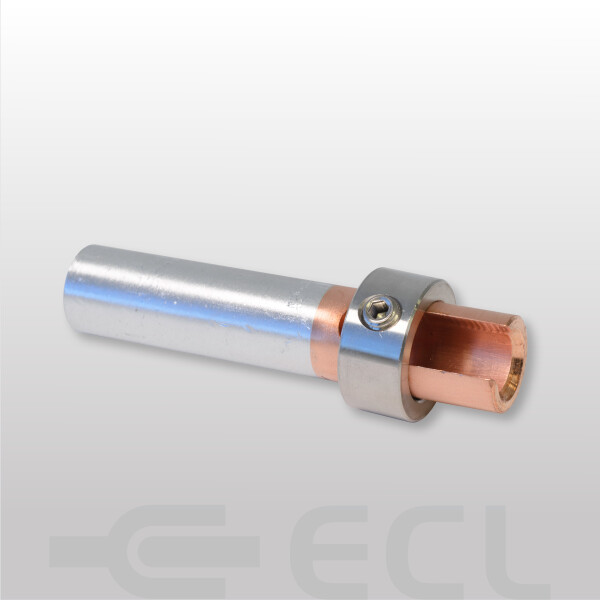

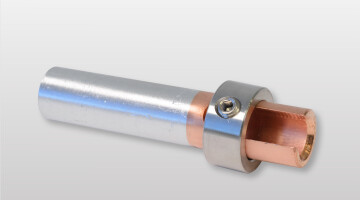

Bimetal switchgear connectors are designed for termination of aluminium cable to a 12mm switchgear stem.
Manufactured from high purity Cu/AL and machined with a slot to insert the 12mm stem, the fittings come complete with a stainless steel locking collar.
Once crimped to the cable the connector is fastened to the switchgear stem by a means of a grub screw in the collar.
- Bimetal switchgear connectors are manufactured to order, meaning any size is available.
For special lugs or other imperial sizes please
contact us
to discuss your requirement.

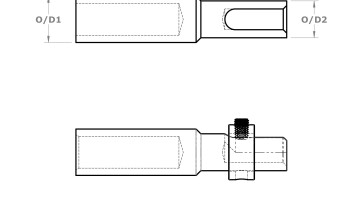

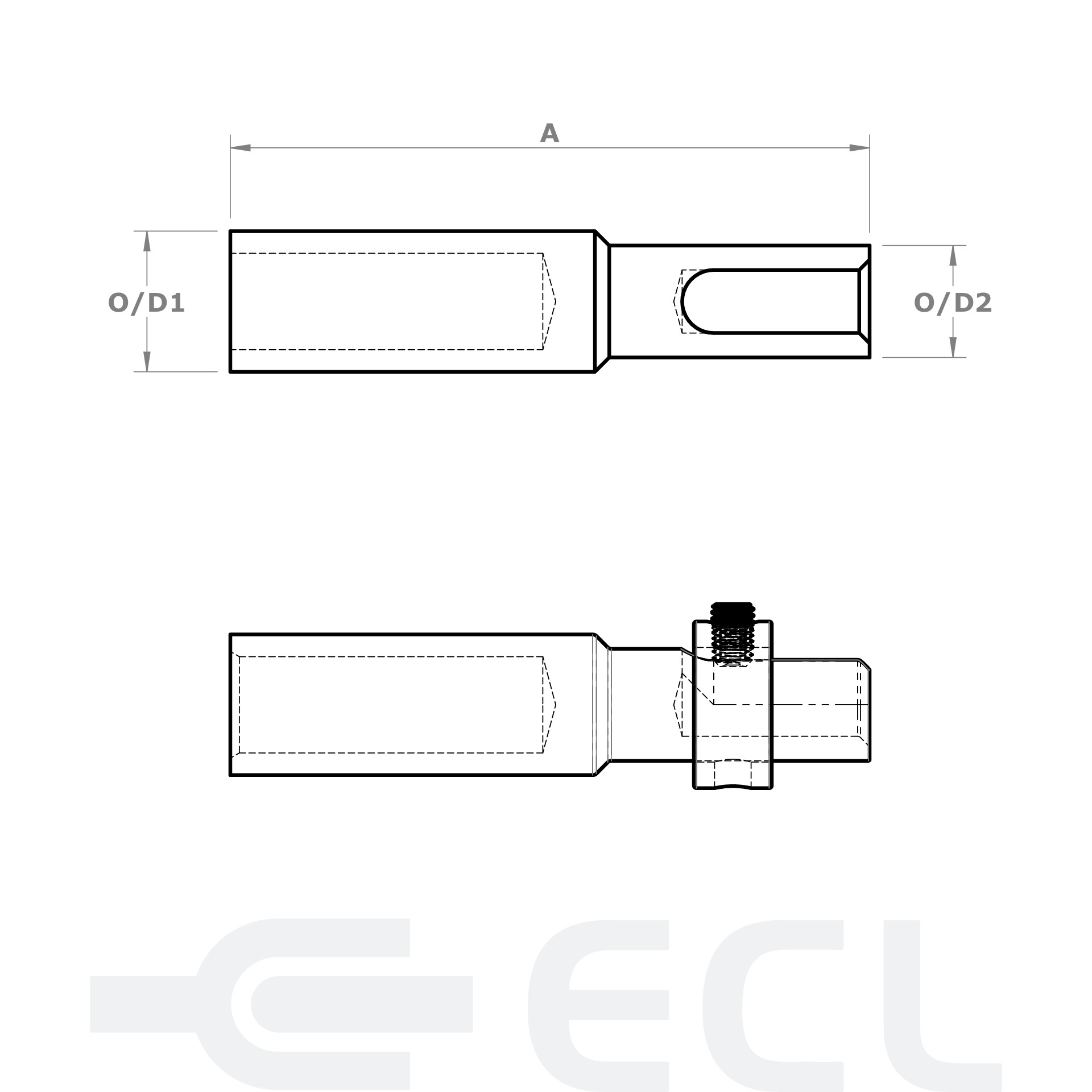

| Part Number | Cable Size | Dimensions (mm) A | Dimensions (mm) B | A/F Hex Die (mm) | Switchgear Stem Diameter (mm) | |
|---|---|---|---|---|---|---|
|
|
16 | 85 | 32 | 7.7 | 12 |
|
|
|
25 | 85 | 32 | 7.7 | 12 |
|
|
|
35 | 85 | 32 | 9.2 | 12 |
|
|
|
50 | 85 | 32 | 10.4 | 12 |
|
|
|
70 | 85 | 32 | 11.5 | 12 |
|
|
|
95 | 110 | 60 | 14.2 | 12 |
|
|
|
120 | 110 | 60 | 16.5 | 12 |
|
|
|
150 | 120 | 60 | 18.3 | 12 |
|
|
|
185 | 120 | 60 | 20 | 12 |
|
|
|
240 | 120 | 60 | 23.1 | 12 |
|
|
|
300 | 120 | 60 | 26 | 12 |
|
|
