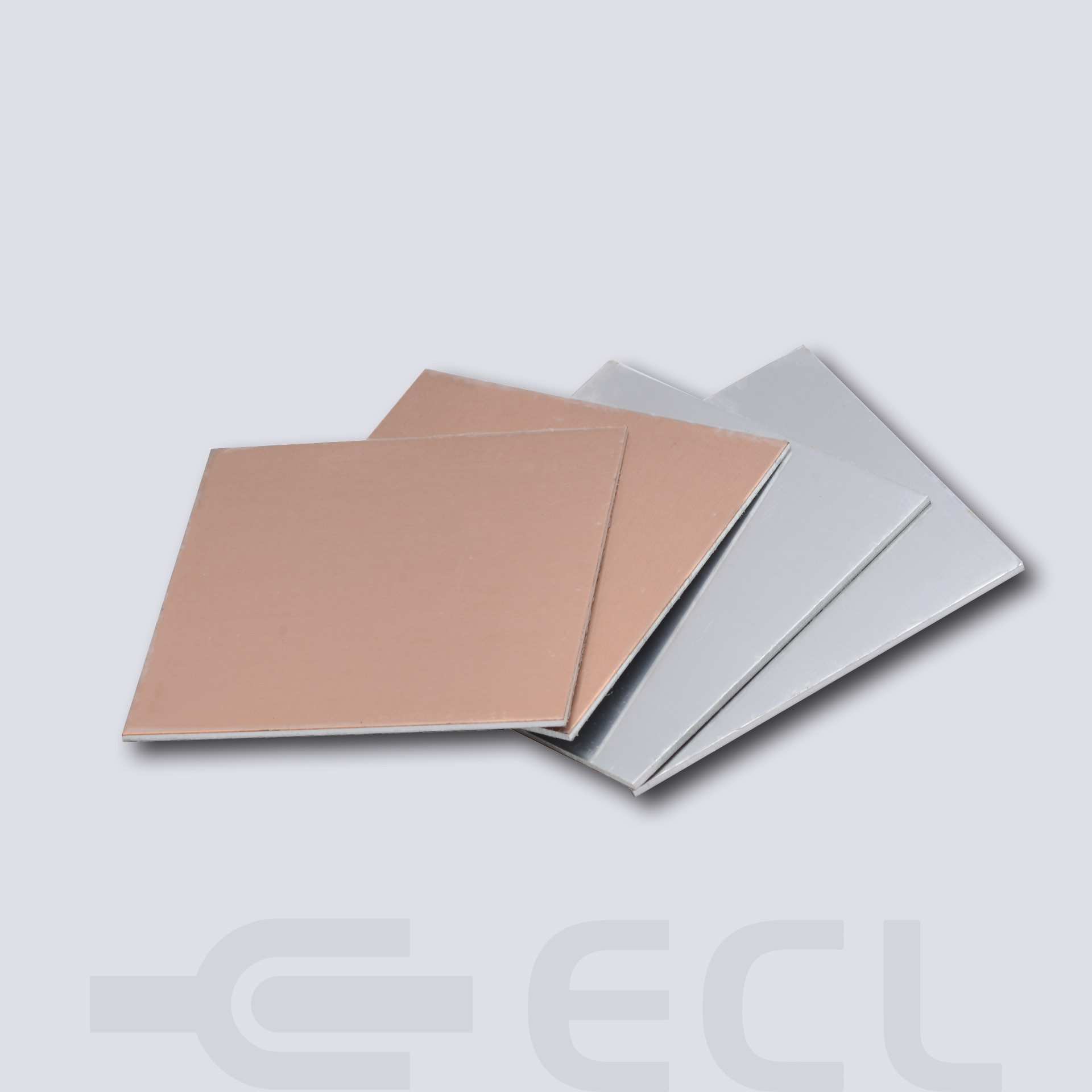

Bimetal Plate

ECL stocks a range of bimetal plate sizes, for bolting copper conductor to aluminium busbar.

ECL can supply custom sizes as per your projects needs.

Contact the ECL team

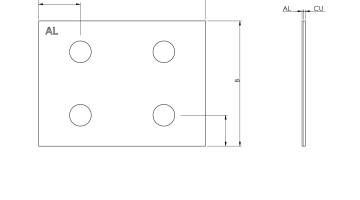

Bimetal Plate dimensions

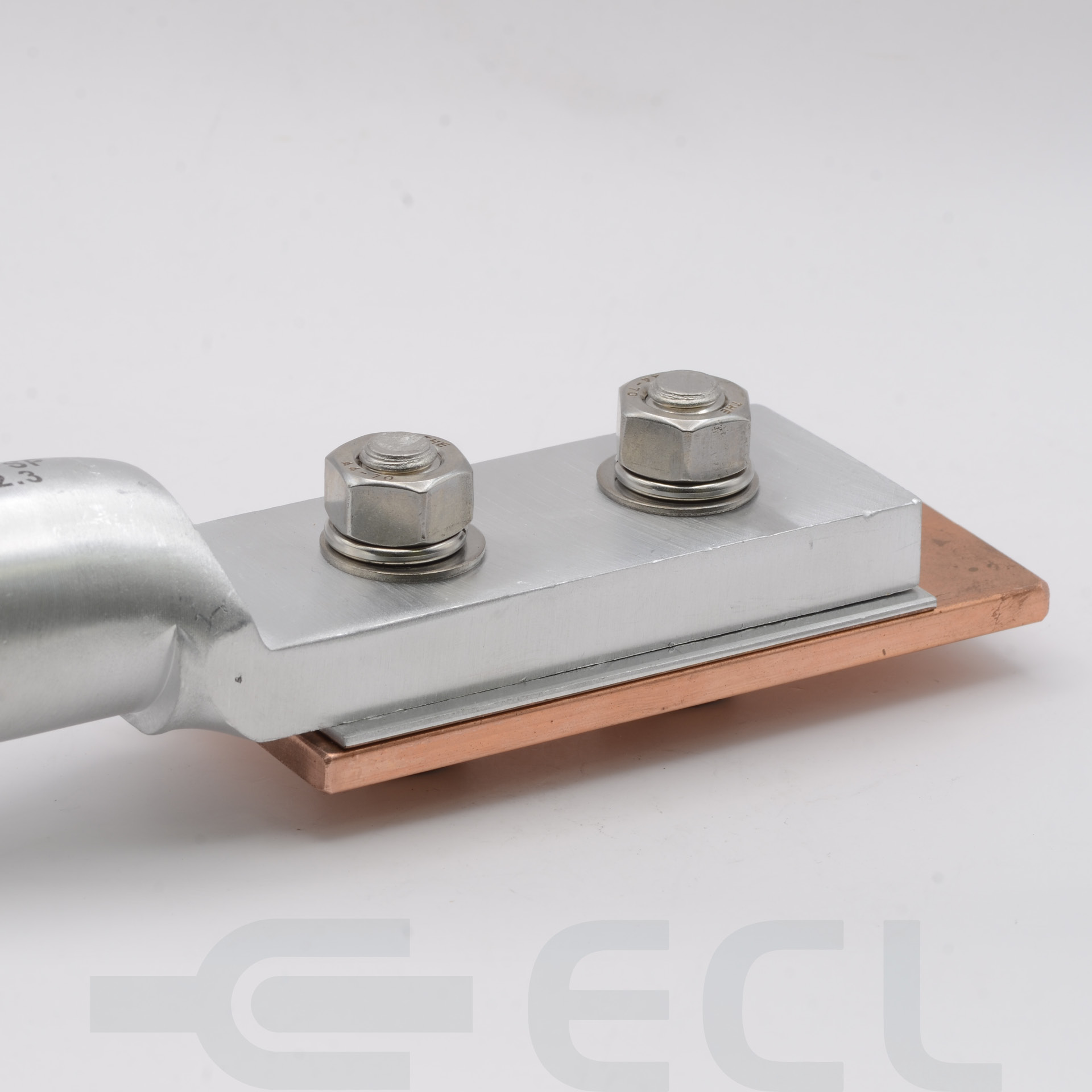

Bimetal Plate 3

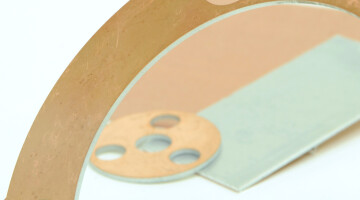

Bimetal Plate 2

	Dimensions mm
Part Number	A	B	Thickness C
	100	45	2	- + Part Number A: B: Thickness C: - +
	100	75	2	- + Part Number A: B: Thickness C: - +
	100	100	2	- + Part Number A: B: Thickness C: - +
	100	450	2	- + Part Number A: B: Thickness C: - +
	120	600	1	- + Part Number A: B: Thickness C: - +
	130	204	2	- + Part Number A: B: Thickness C: - +
	130	520	2	- + Part Number A: B: Thickness C: - +
	138	600	2	- + Part Number A: B: Thickness C: - +
