Bimetal Lugs - for Flex Aluminium Cable

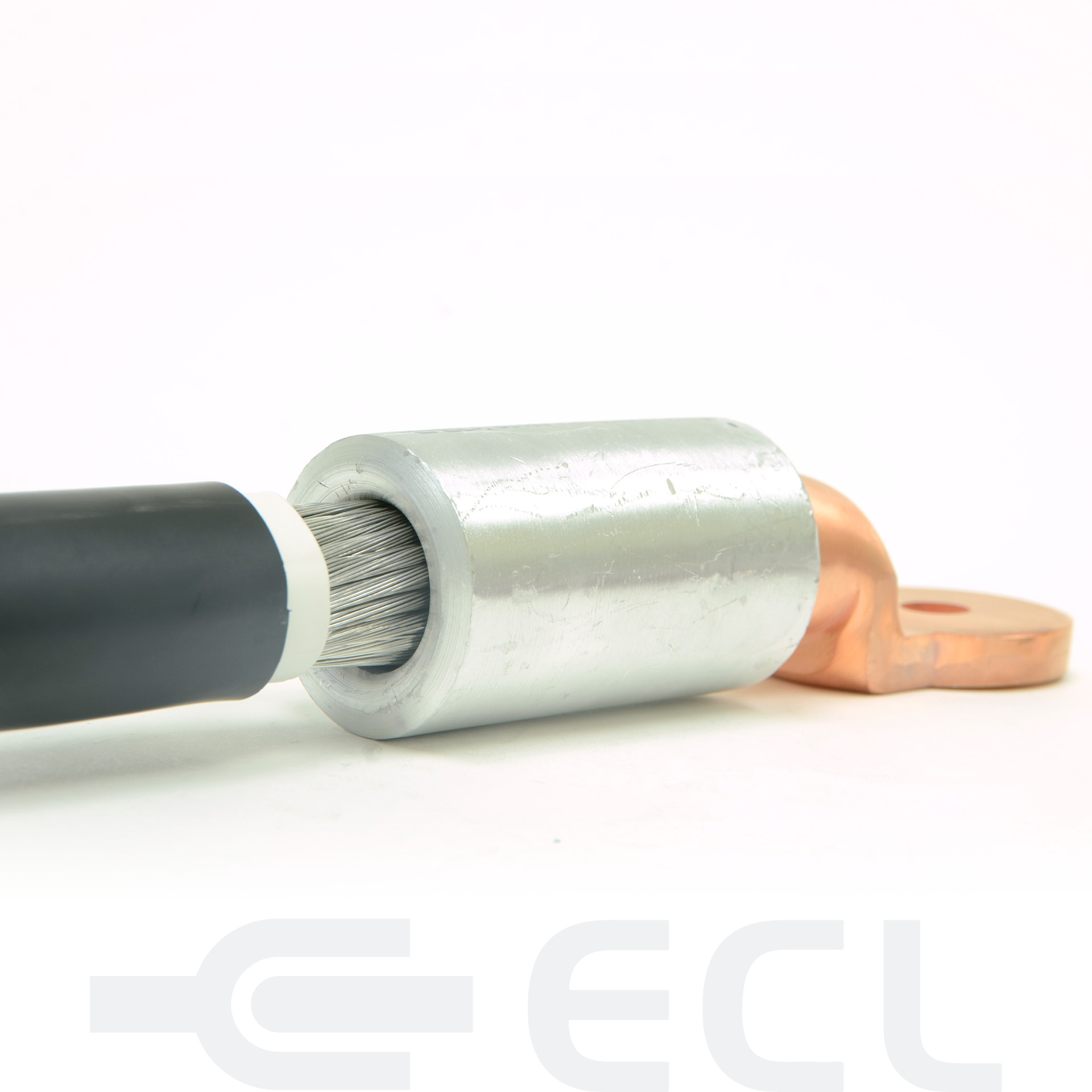

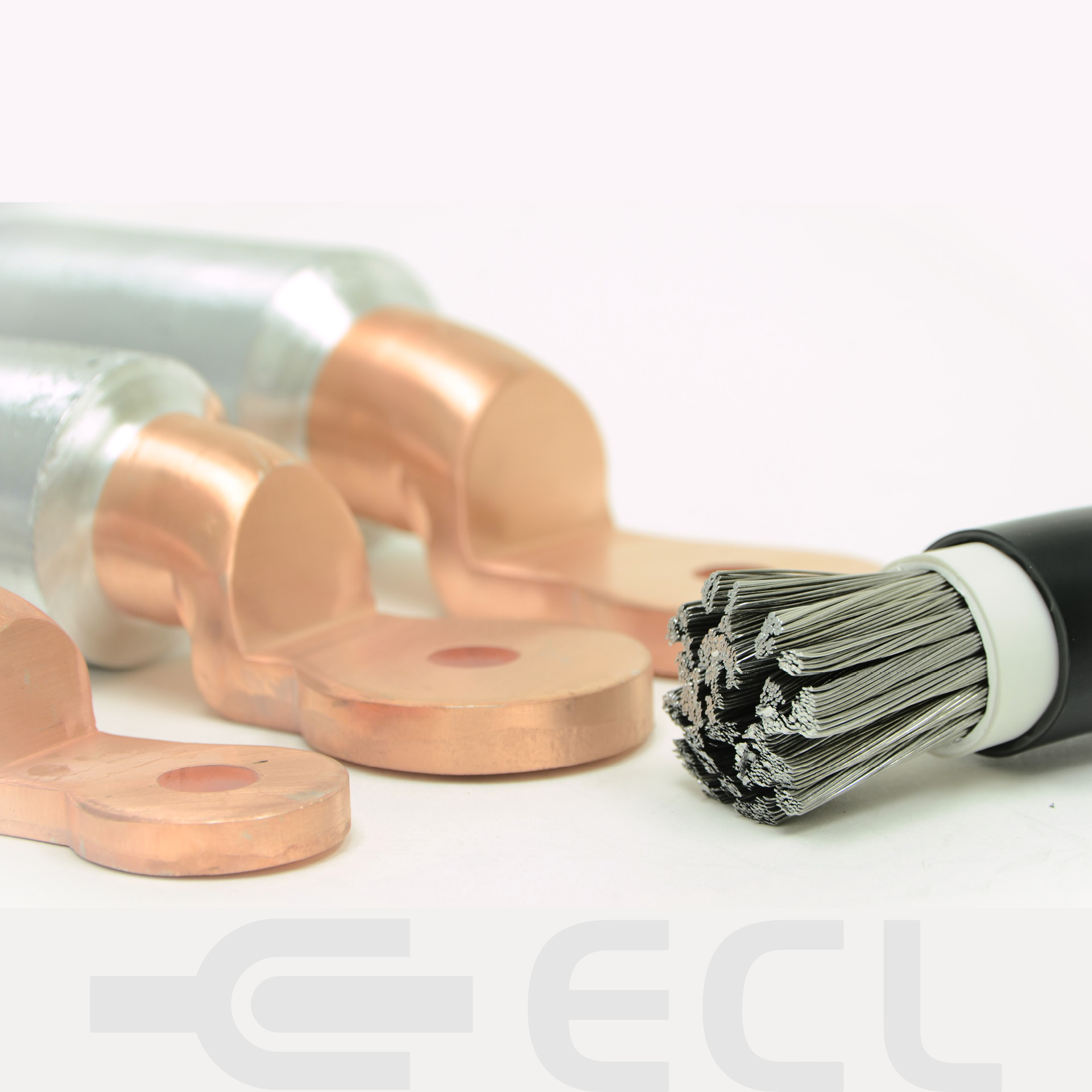

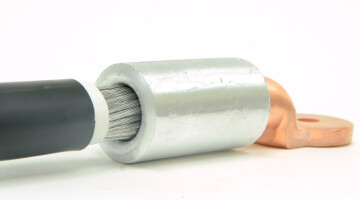

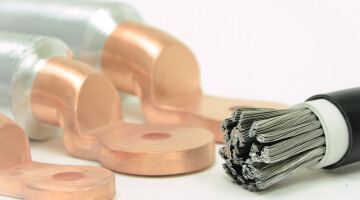

Used for fine-stranded flexible aluminium cable. Manufactured from electrical-grade aluminium and copper. Complete with jointing compound in the aluminium barrel, capped end and compression die information.

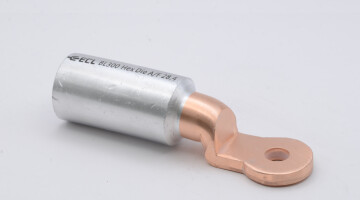

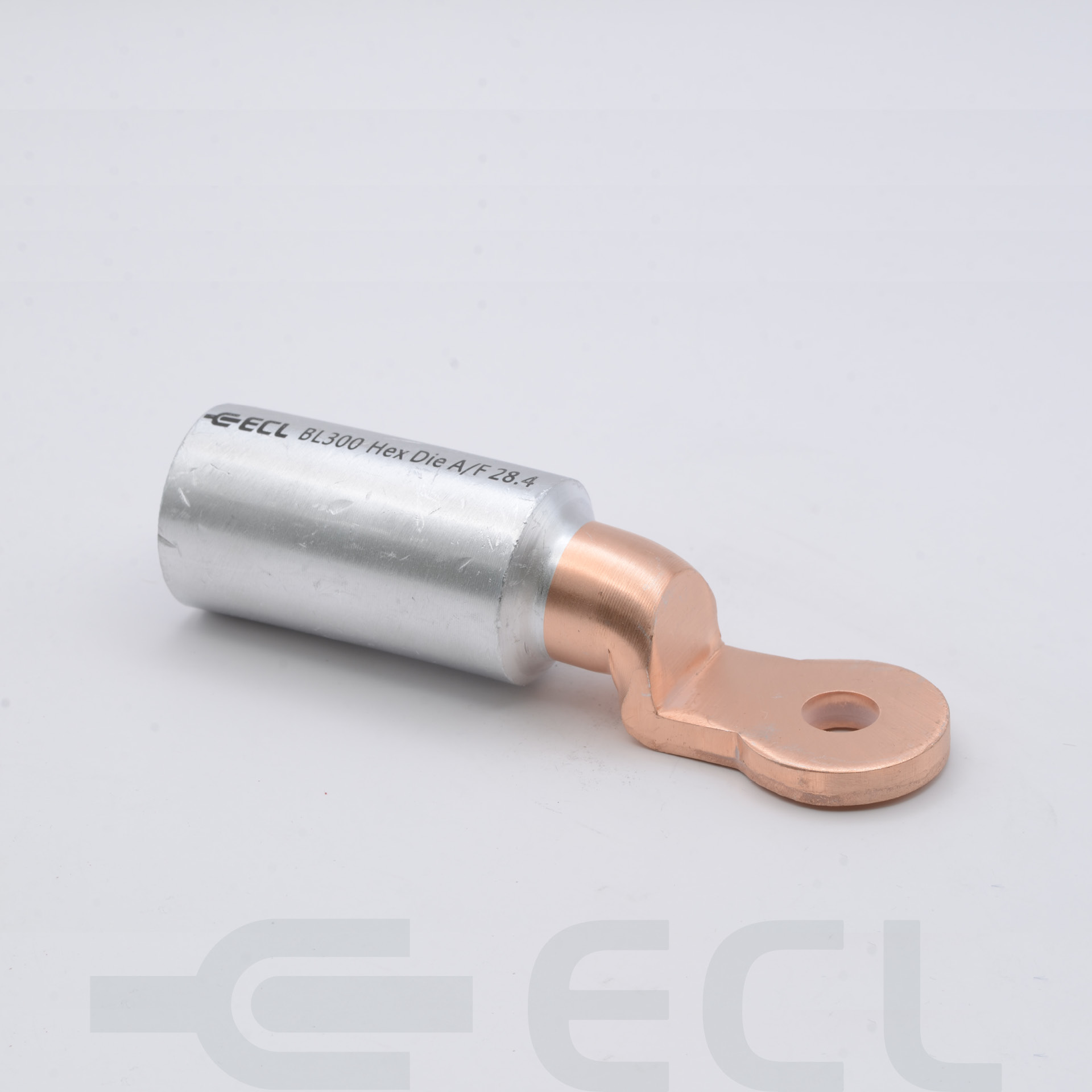

Crimp Die information is supplied with each Bimetal Lug.
Bimetal Lugs are available for most named conductors.
ECL can custom manufacture Narrow Palm Bimetal Lugs for applications such as moulded case circuit breakers. Please call the ECL team to discuss your requirements.
Contact the ECL team

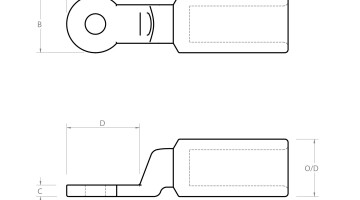

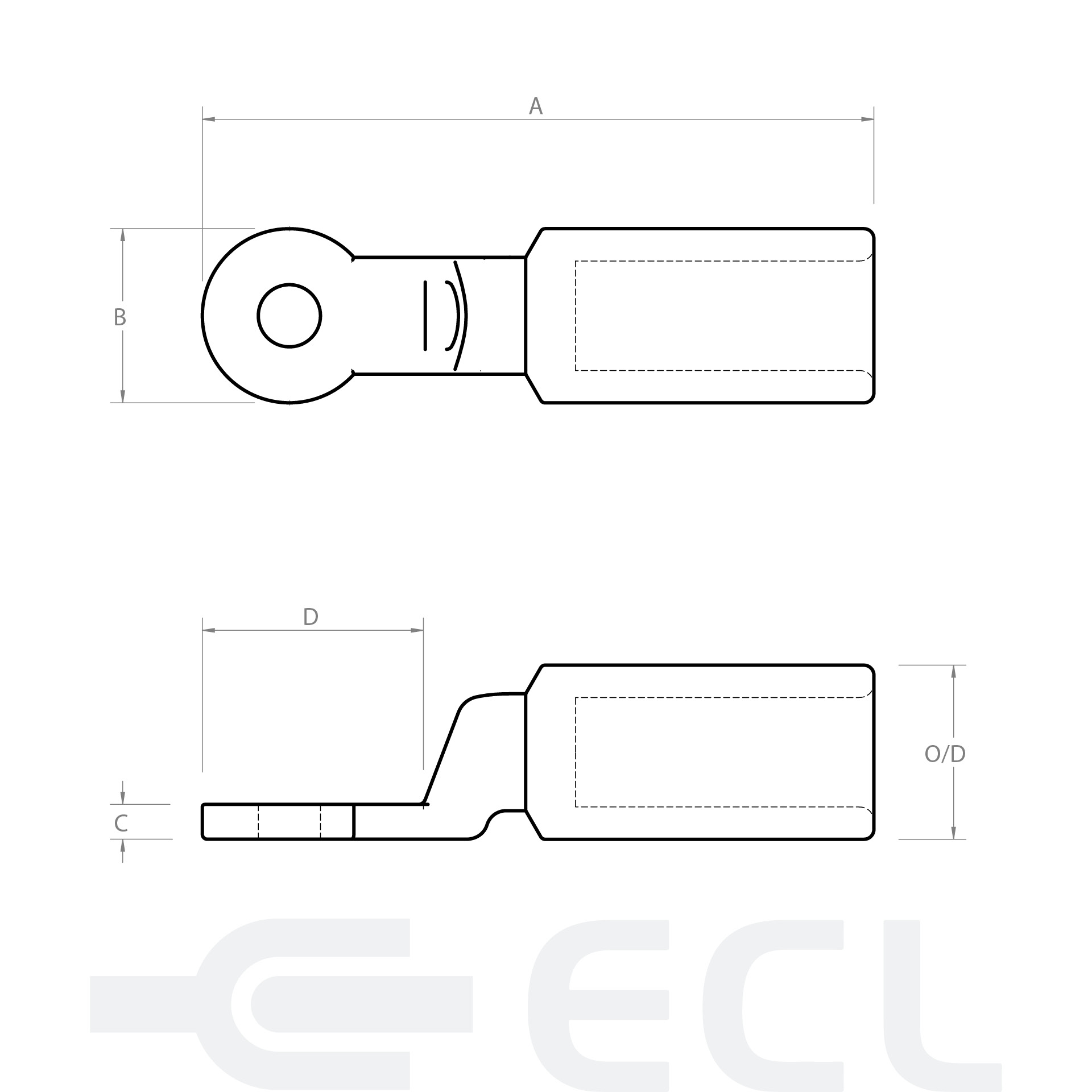

| Part Number | Cable Size | Stud Size mm | Dimensions mm A | Dimensions mm B | Dimensions mm C | Dimensions mm D | Dimensions mm O/D | Crimp Die Info A/F Hex Die mm | |
|---|---|---|---|---|---|---|---|---|---|
|
|
25mm² | 8 | 75 | 22 | 4.5 | 24 | 12.0 | 9.0 | |
|
|
25mm² | 10 | 75 | 22 | 4.5 | 24 | 12.0 | 9.0 | |
|
|
25mm² | 12 | 75 | 22 | 4.5 | 24 | 12.0 | 9.0 | |
|
