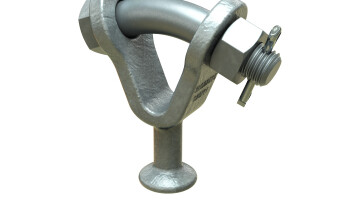

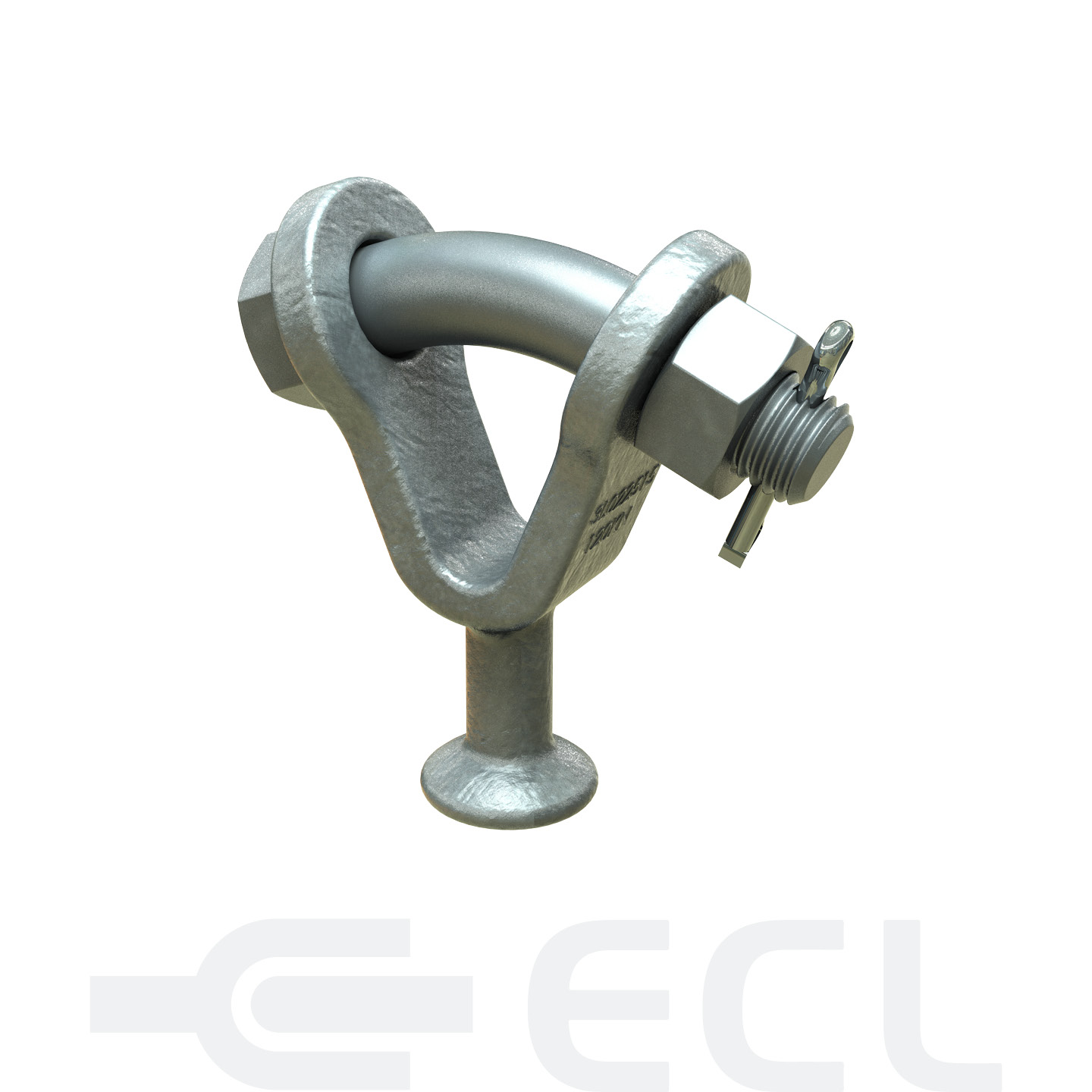

Ball Y Clevis
Ball Y Clevis provide a versatile and secure connection, accommodating a range of angles and movements.
Material:
- Galvanised Forged Steel
Split Pin: Stainless Steel
For special lugs or other imperial sizes please
contact us
to discuss your requirement.

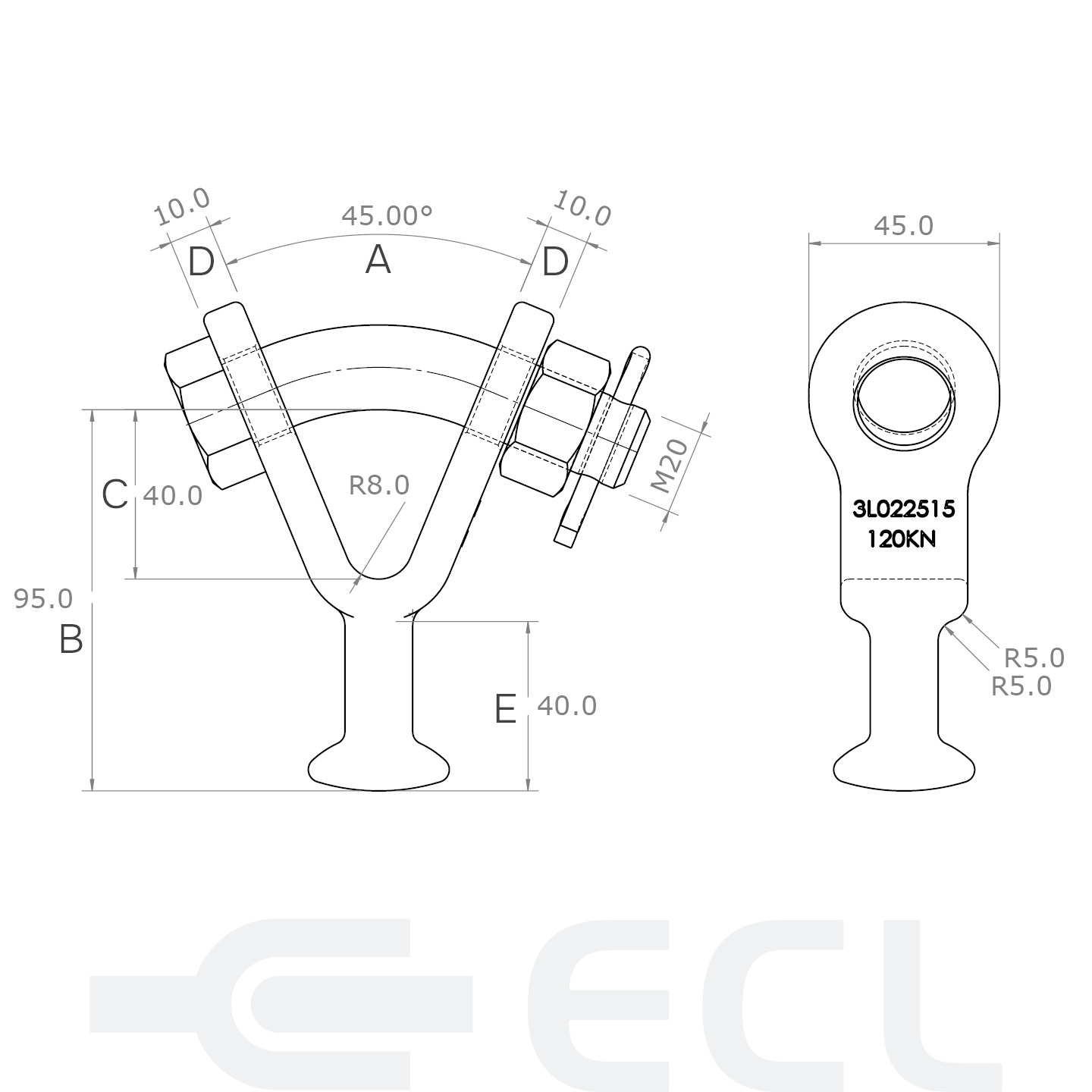

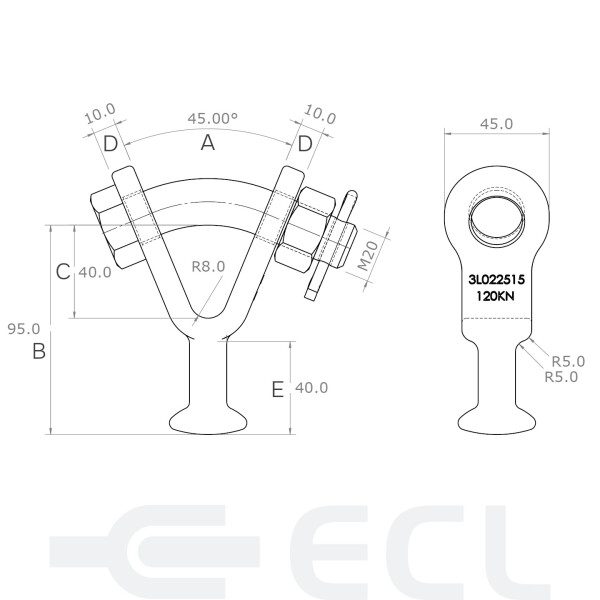

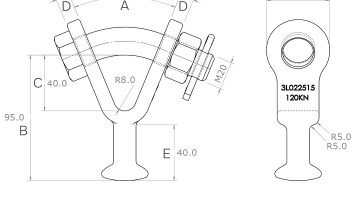

Dimensions mm | |||||||||
---|---|---|---|---|---|---|---|---|---|
Part Number | MFL kN | Ball & Shank | Bolt F | A | B | C | D | E | |
|
120 | 16 | M20 | 45° | 95 | 40 | 10 | 40 |
![]() |
|
160 | 20 | M20 | 50° | 112 | 55 | 12 | 45 |
![]() |
