Ball Fittings
| Part Number | Description | Bolt | Clevis | Ball Fitting | Min. Failing Load | |
|---|---|---|---|---|---|---|
|
|
Ball Clevis Extension, 375 long | M20 | 24 | IEC 20 Ball | 160kN | |
|
|
Ball Clevis | M16 | 20 | IEC 16 Ball | 120kN | |
|
|
Ball Clevis | M20 | 24 | IEC 16 Ball | 120kN | |
|
|
Ball Clevis | M20 | 24 | IEC 20 Ball | 160kN | |
|
|
Ball Clevis | M24 | 29 | IEC 24 Ball | 300kN | |
|
|
Ball Clevis | M24 | 36 | IEC 20 Ball | 160kN | |
|
|

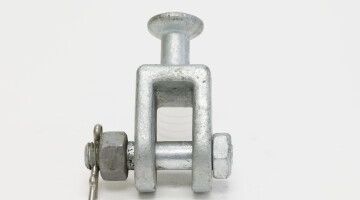

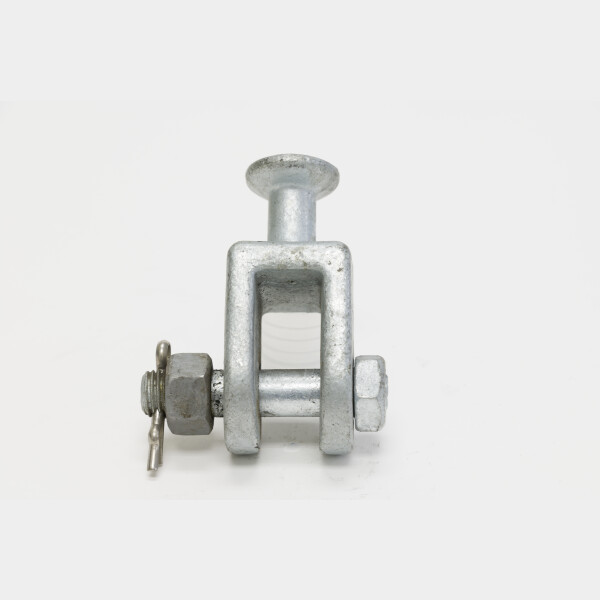

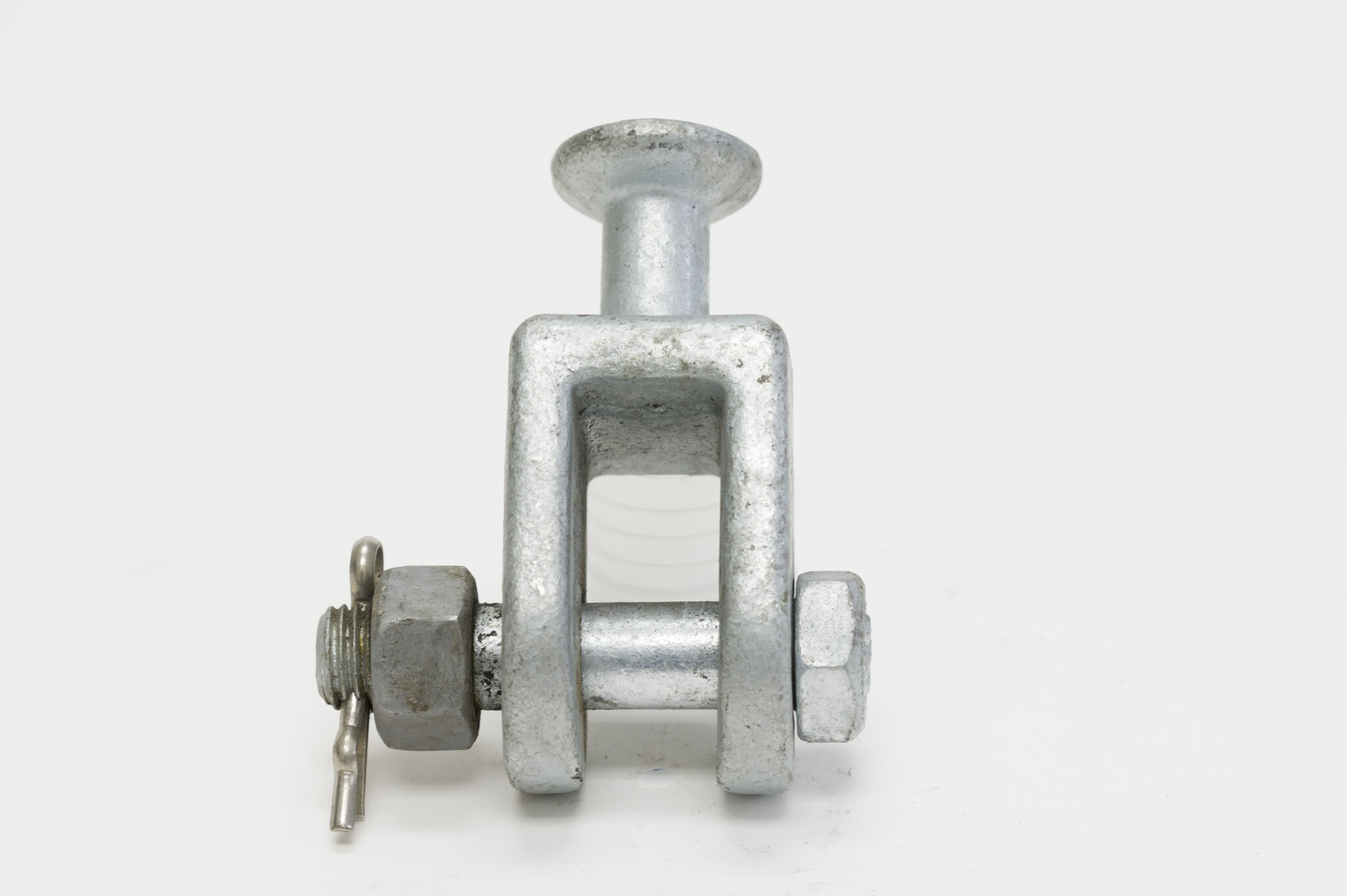

Ball Y-Clevis | M20 | - | IEC 16 Ball | 120kN | |
|
|
Ball Y-Clevis | M20 | - | IEC 20 Ball | 160kN | |
|
|
Ball Tongue (20 Tongue, 22 Hole) | - | - | IEC 20 Ball | 160kN | |
|
|
Ball Tongue (25 Tongue, 26 Hole) | - | - | IEC 24 Ball | 300kN | |
|
|
Ball Eye | - | - | IEC 16 Ball | 120kN | |
|
|
Ball Eye | - | - | IEC 20 Ball | 160kN | |
|
