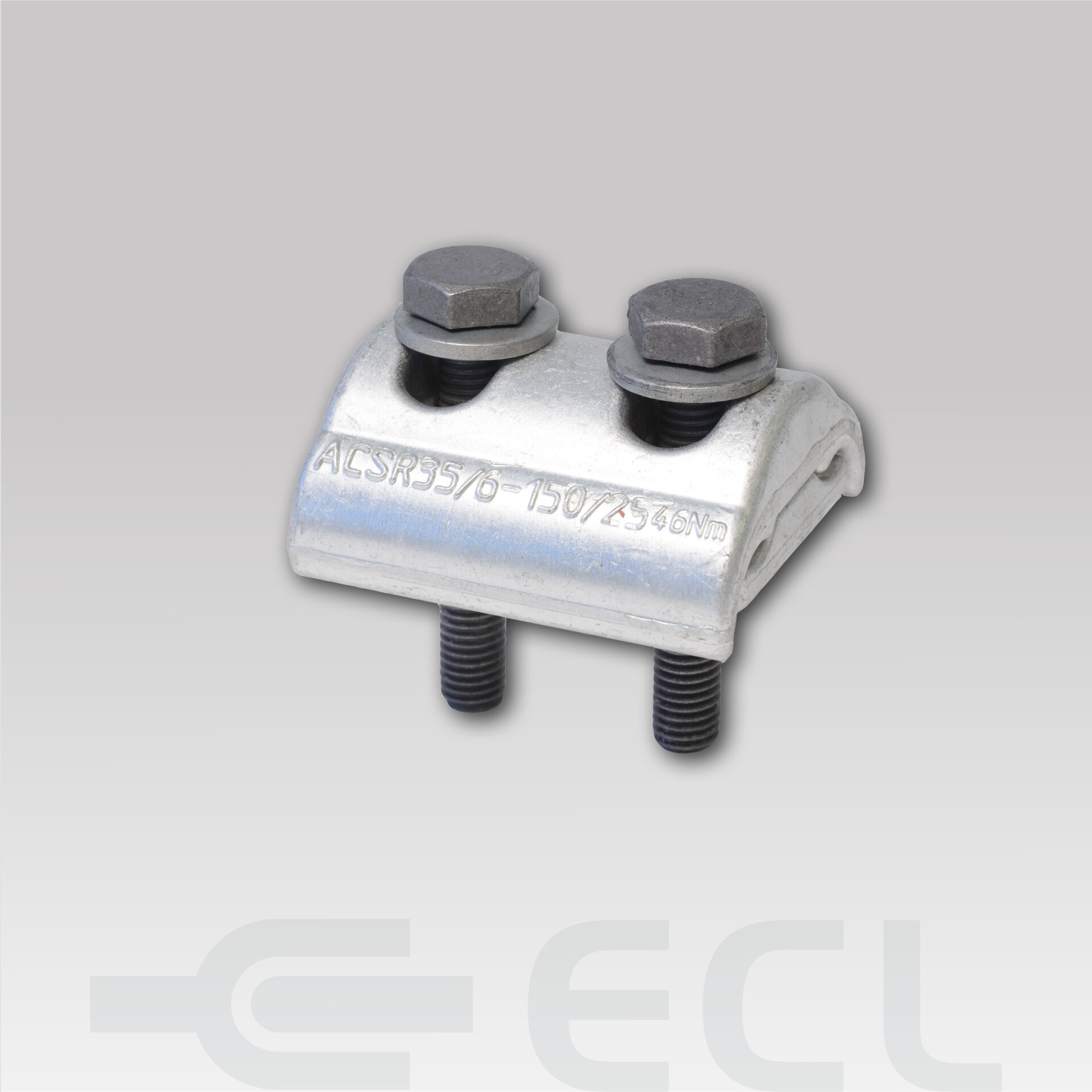

Aluminium Parallel Groove Clamps

For tap-off connection of AL-alloy conductors.

Material:
Body: High strength corrosion resistant AL-Alloy.
Bolts: Steel 8.8, hot-dip galvanized.

Part Number	Conductor Diameter (mm)	Bolts	Conductor Cross Section (mm²) AL	Conductor Cross Section (mm²) ACSR
	6.3-15.7	2 x M10	25–150	25/4–120/20	- + Part Number Conductor Diameter (mm): Bolts: Conductor Cross Section (mm²) AL: Conductor Cross Section (mm²) ACSR: - +
	7.5-17.5	2 x M10	35–185	35/6–150/25	- + Part Number Conductor Diameter (mm): Bolts: Conductor Cross Section (mm²) AL: Conductor Cross Section (mm²) ACSR: - +
	7.5-21.6	3 x M10	35–300	35/6–265/35	- + Part Number Conductor Diameter (mm): Bolts: Conductor Cross Section (mm²) AL: Conductor Cross Section (mm²) ACSR: - +
