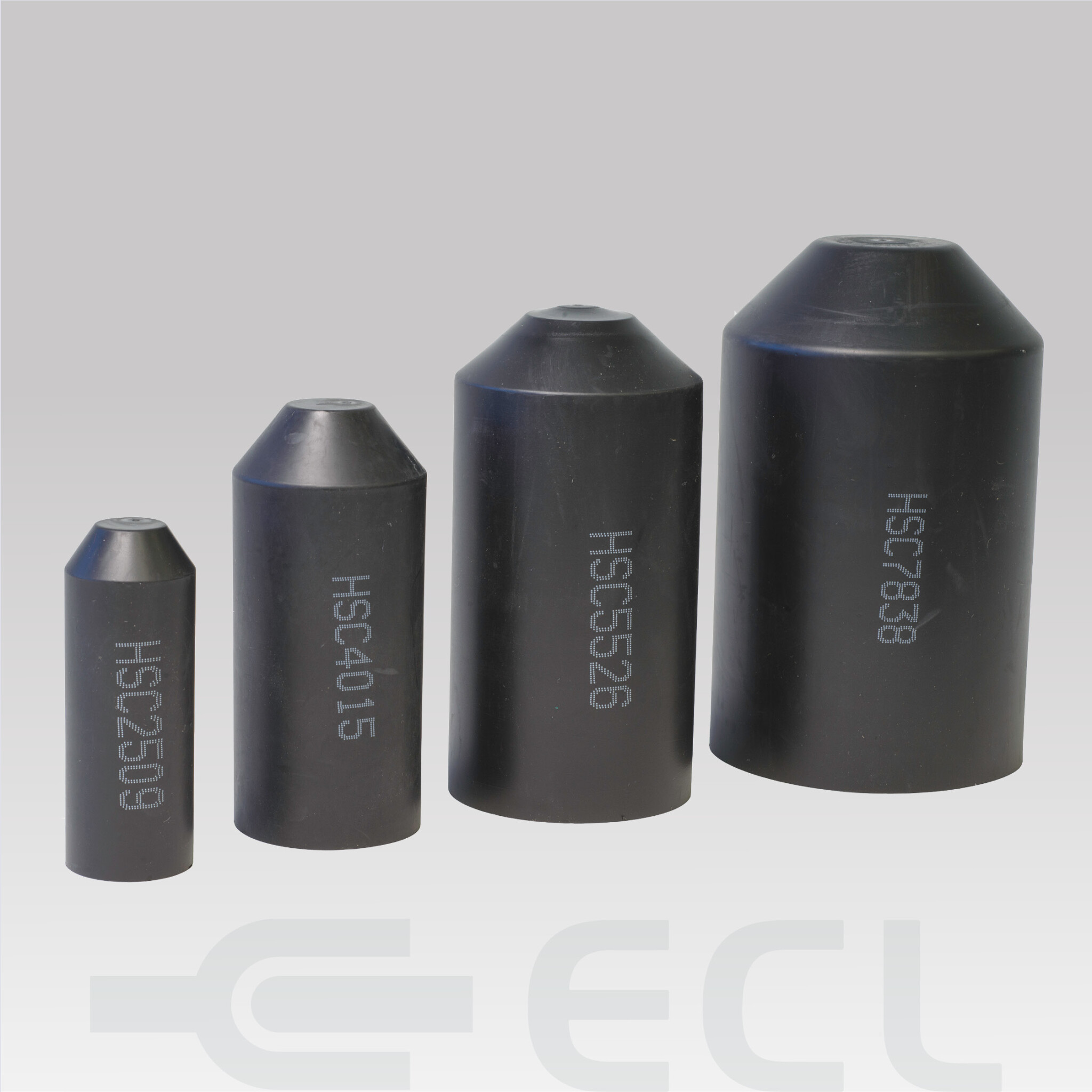

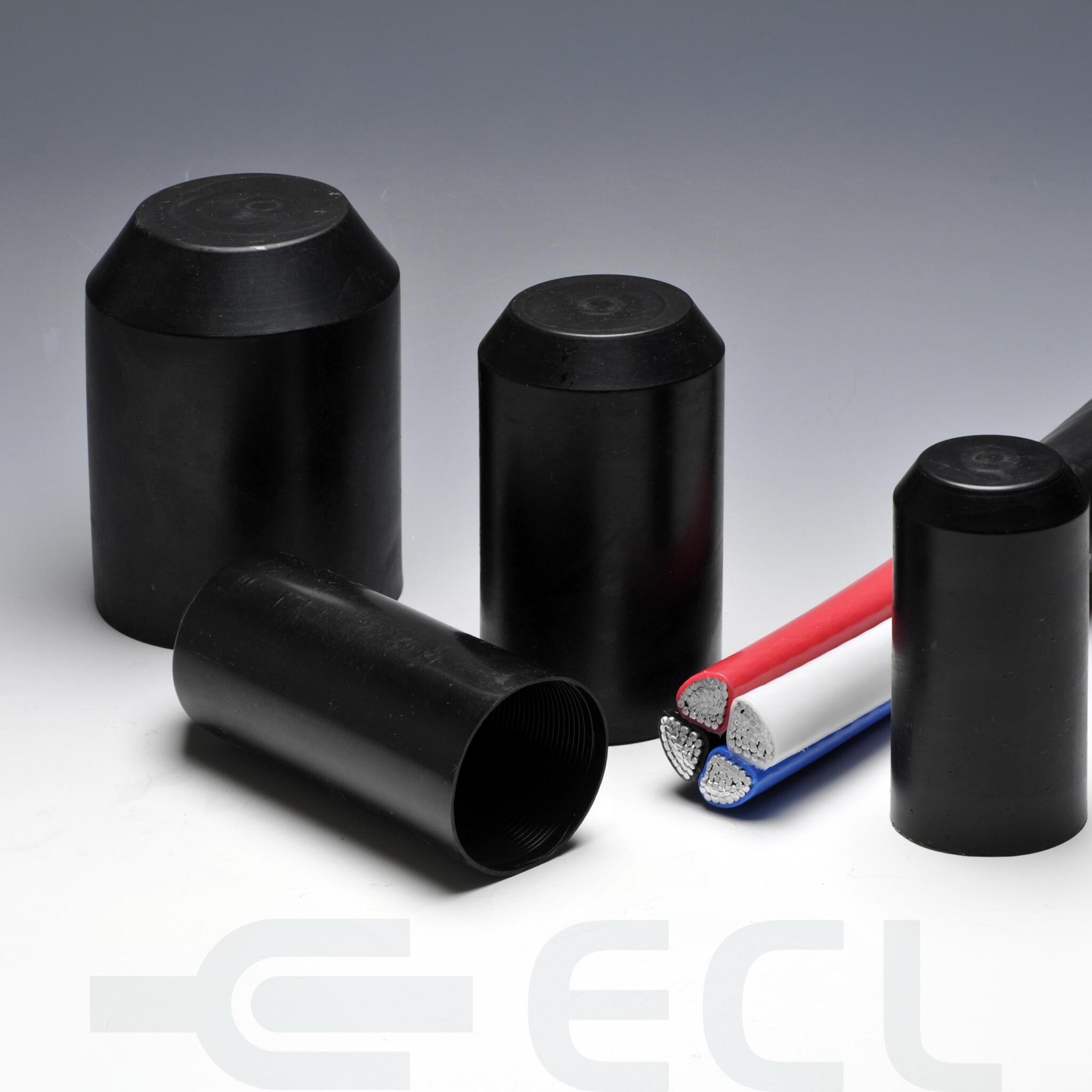

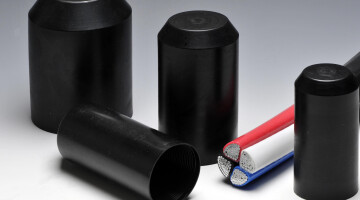

Heatshrink End Caps

Cross linked polyolefin
UV and weather resistant
Excellent sealing properties adhesive lined
Operating temp -55°C-110°C
RoHS Compliant
Standard colour black
Pressure Relief End Caps have an inbuilt relief/degassing valve that
vents gas buildup above 3-5PSI

Part Number	Description	Minimum Expanded Diameter (mm)	Recovered Diameter (mm)	Standard Length
	Heatshrink End Cap 12/4	12mm	4mm	55mm	- + Part Number Description: Minimum Expanded Diameter (mm): Recovered Diameter (mm): Standard Length: Heatshrink End Cap 12/4 12mm 4mm 55mm - +
	Heatshrink End Cap 25/8.5	25mm	8.5mm	68mm	- + Part Number Description: Minimum Expanded Diameter (mm): Recovered Diameter (mm): Standard Length: Heatshrink End Cap 25/8.5 25mm 8.5mm 68mm - +
	Heatshrink End Cap 35/16	35mm	16mm	83	- + Part Number Description: Minimum Expanded Diameter (mm): Recovered Diameter (mm): Standard Length: Heatshrink End Cap 35/16 35mm 16mm 83 - +
	Heatshrink End Cap 40/15	40mm	15mm	90mm	- + Part Number Description: Minimum Expanded Diameter (mm): Recovered Diameter (mm): Standard Length: Heatshrink End Cap 40/15 40mm 15mm 90mm - +
	Heatshrink End Cap 55/26	55mm	26mm	103mm	- + Part Number Description: Minimum Expanded Diameter (mm): Recovered Diameter (mm): Standard Length: Heatshrink End Cap 55/26 55mm 26mm 103mm - +
	Heatshrink End Cap 75/36	75mm	36mm	130	- + Part Number Description: Minimum Expanded Diameter (mm): Recovered Diameter (mm): Standard Length: Heatshrink End Cap 75/36 75mm 36mm 130 - +
	Heatshrink End Cap 100/52	100mm	52mm	155mm	- + Part Number Description: Minimum Expanded Diameter (mm): Recovered Diameter (mm): Standard Length: Heatshrink End Cap 100/52 100mm 52mm 155mm - +
	Heatshrink End Cap 120/57	120mm	57mm	155	- + Part Number Description: Minimum Expanded Diameter (mm): Recovered Diameter (mm): Standard Length: Heatshrink End Cap 120/57 120mm 57mm 155 - +
	Heatshrink End Cap 145/57	145mm	57mm		- + Part Number Description: Minimum Expanded Diameter (mm): Recovered Diameter (mm): Standard Length: Heatshrink End Cap 145/57 145mm 57mm - +
